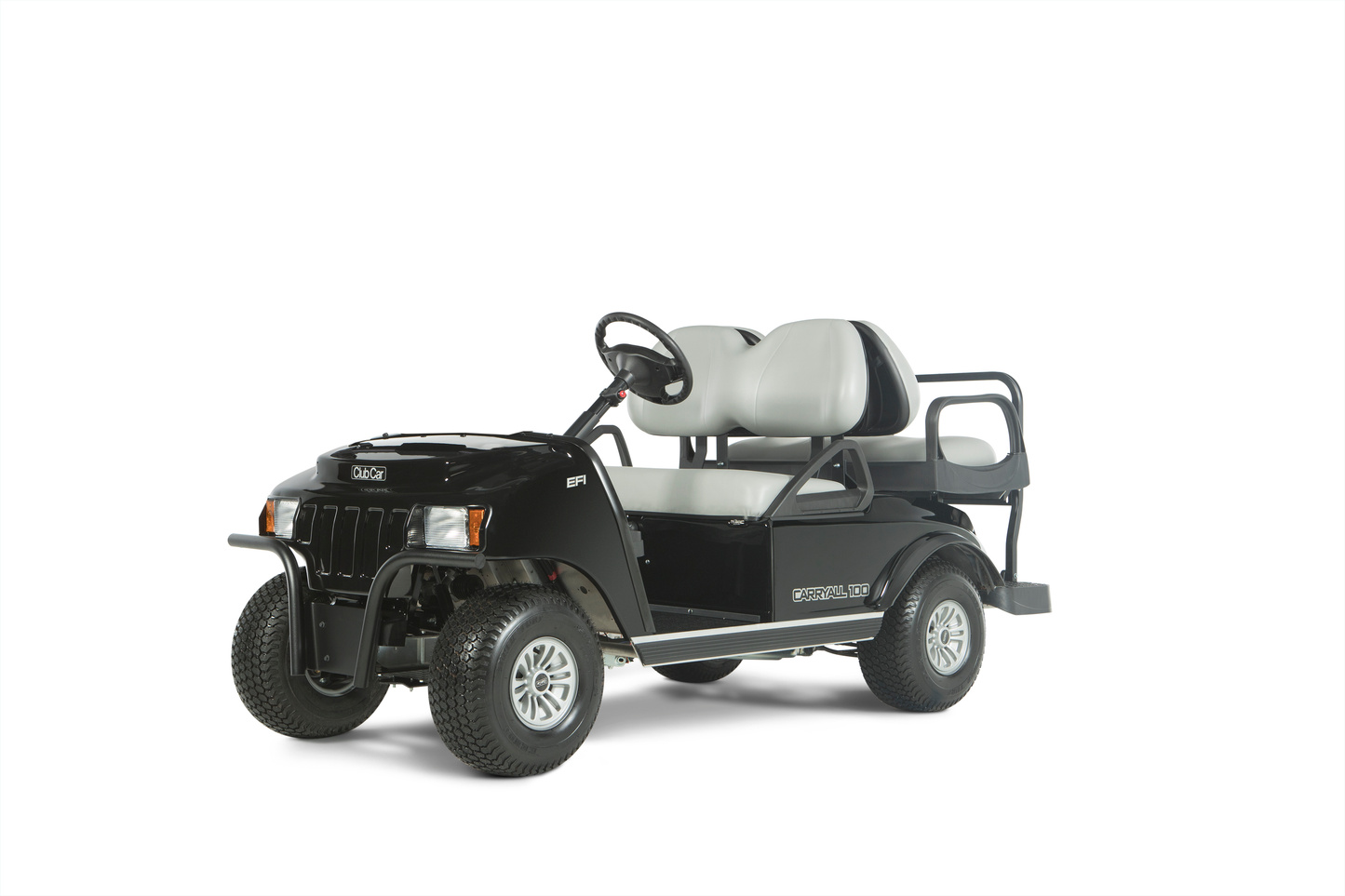

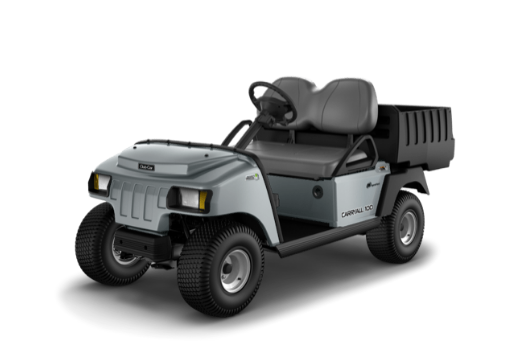

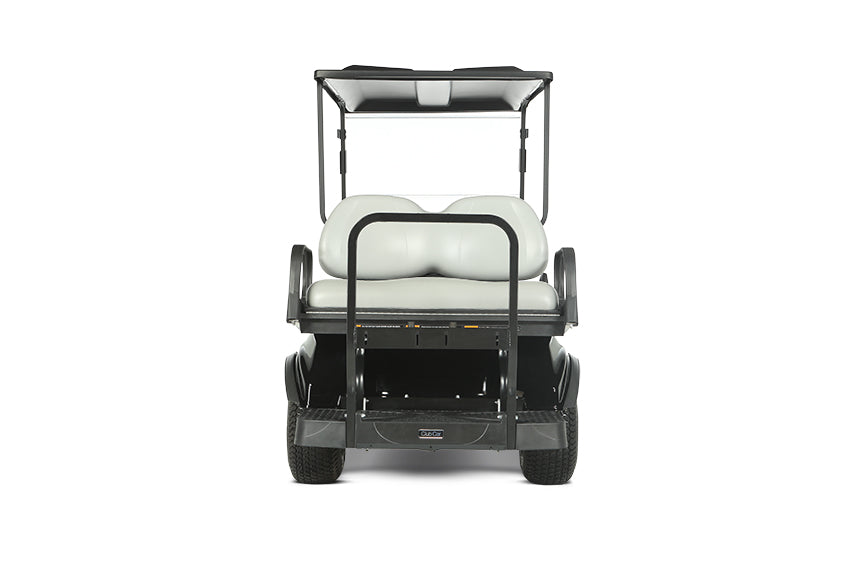

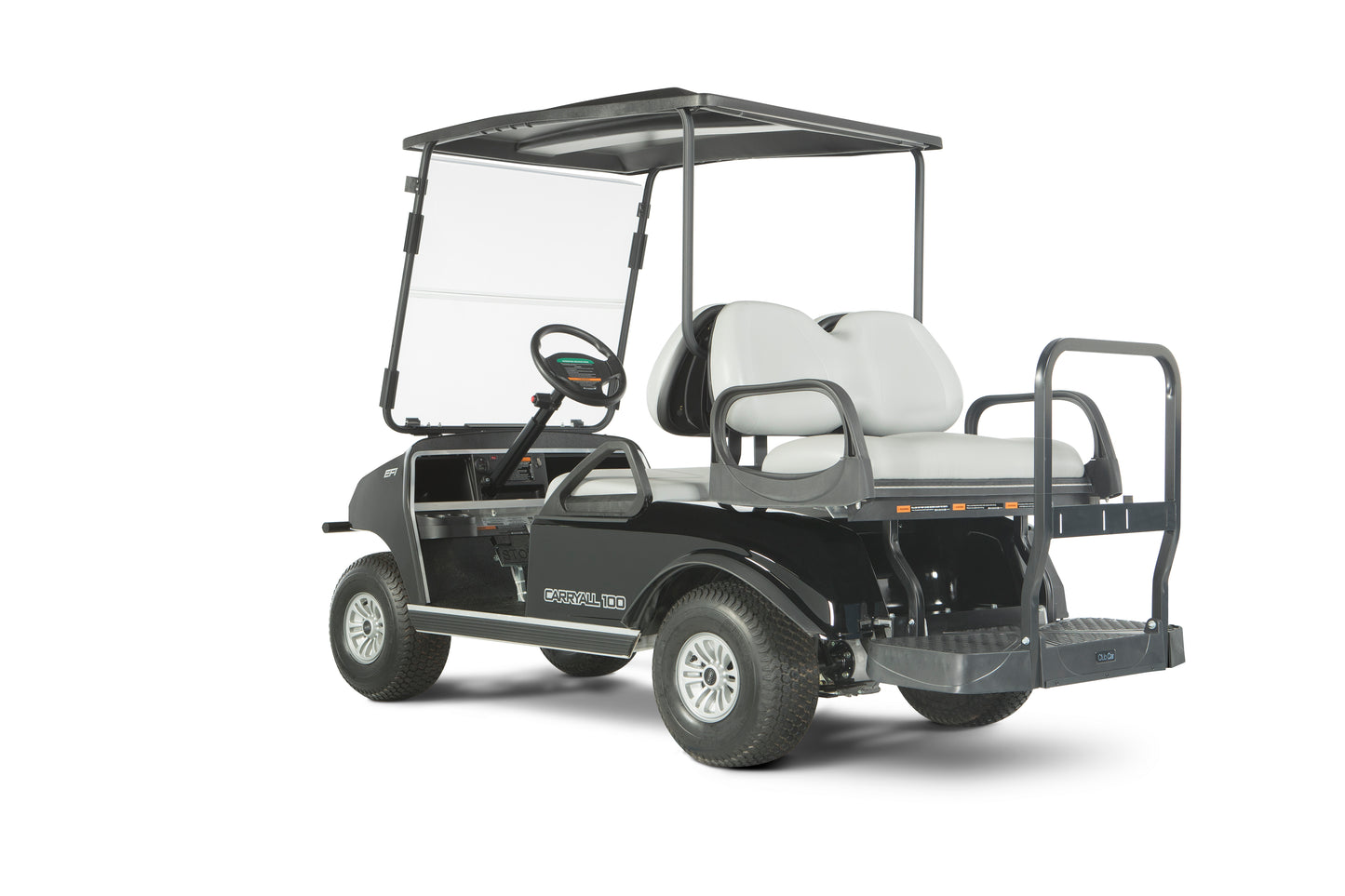

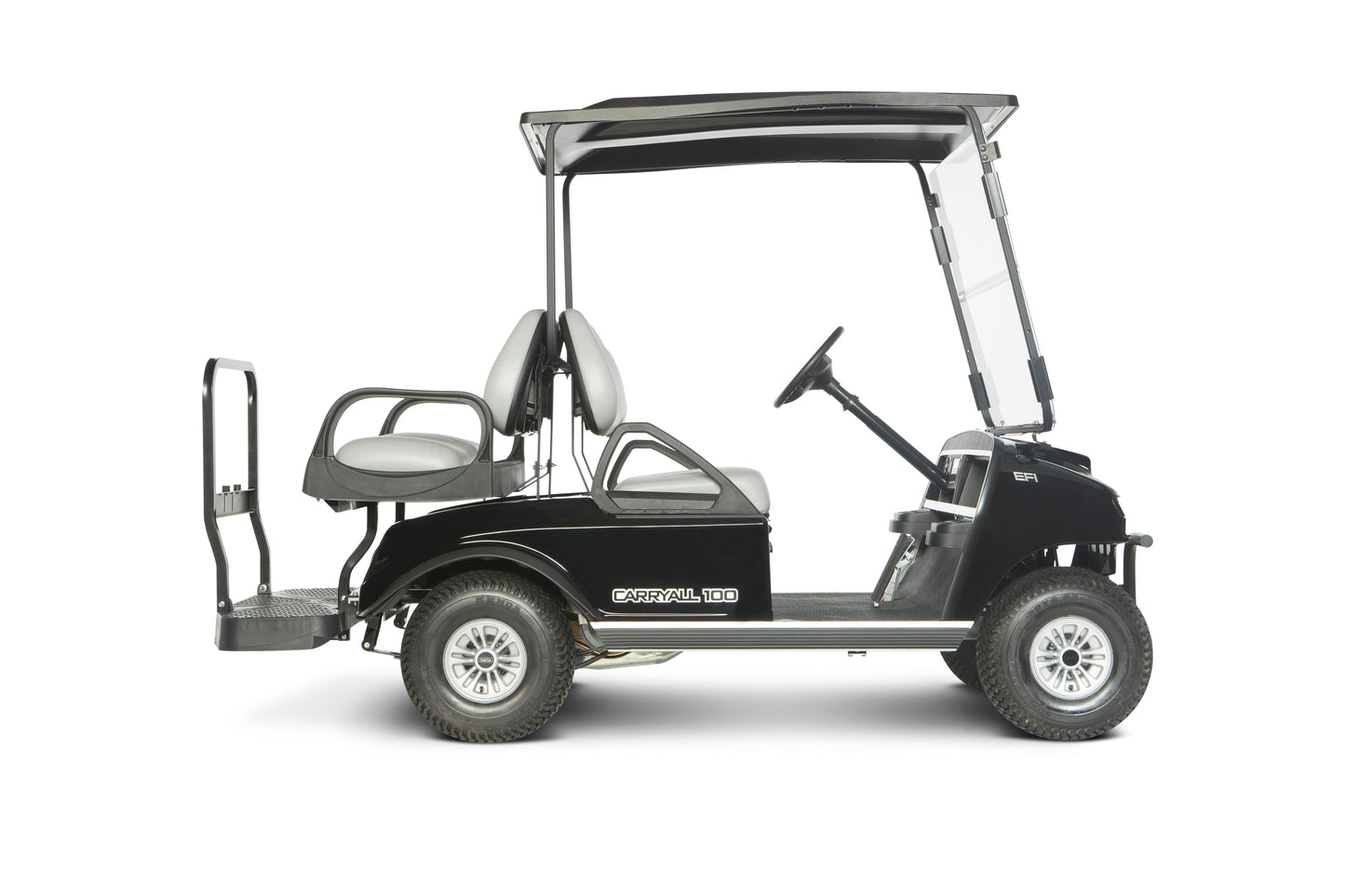

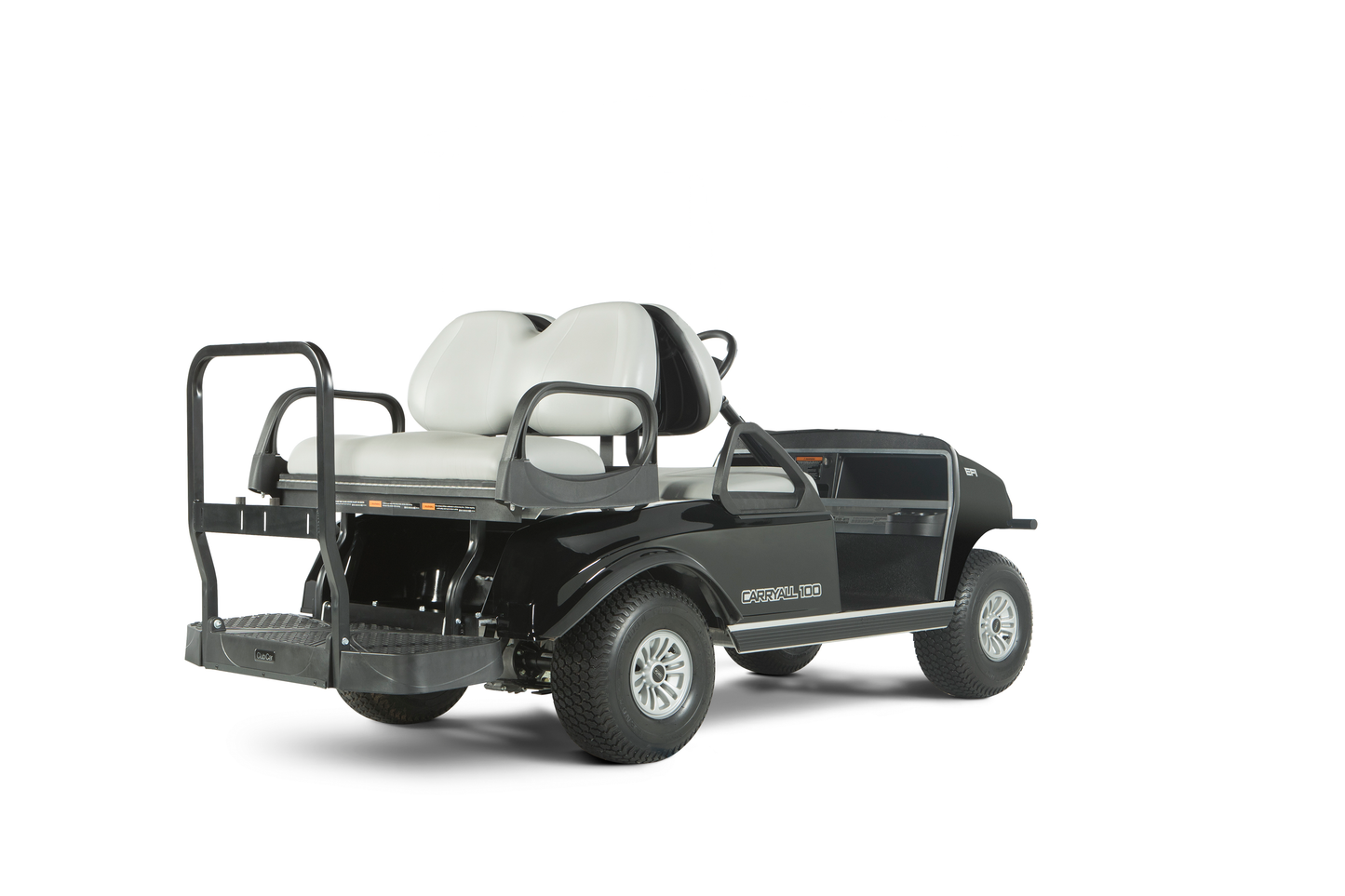

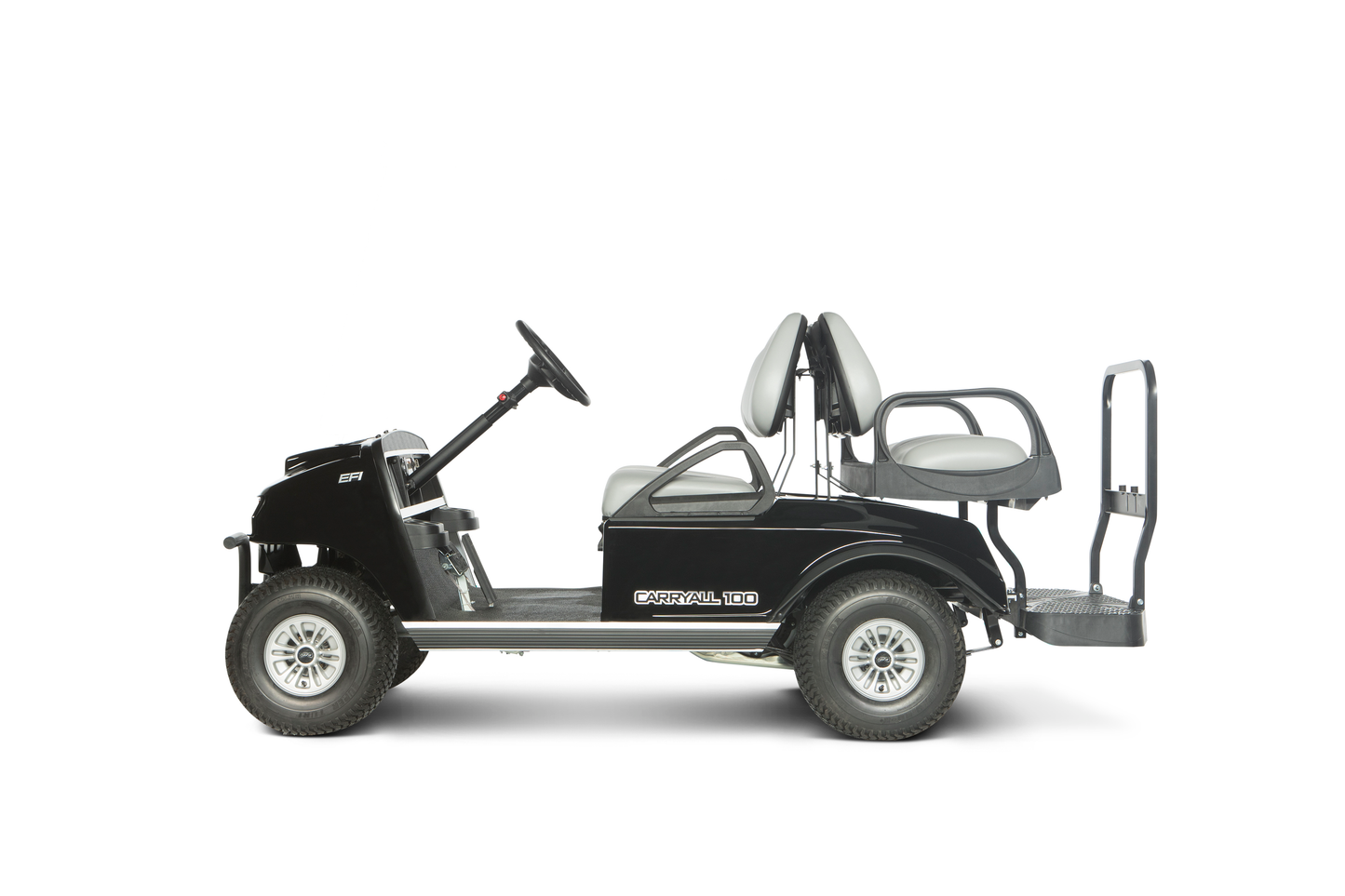

The sturdy but affordable Carryall 100's small profile and tight turning radius make it a great choice for security, parking, and lighter duties. Available in gas or electric models with onboard chargers and reel retractors, this rugged utility vehicle fits into the back of a pick-up truck for easy transport.
Power
- Engine/Motor Type: Kohler, 4-cycle
- Displacement: 429 cc
- Cylinders: Single
- Valving: Overhead Cam
- Cooling: Air-cooled
- Horsepower (rated): 14.0 HP (10.3 kW) rated @ 3600 RPM per SAE J1940
- Max Torque: 20.9 ft-lbs. (28.3 n-m) rated @ 2800 RPM
- Lubrication: Splash Lubrication
- Governor: Ground Speed
- Transmission: Continuously Variable Transmission (CVT)
- Gear Selection: Forward/Neutral/Reverse
- Gear Ratio: 11.47:1 Forward; 15.63:1 Reverse
- Ignition: Electronic
- Battery: 12v 500 CCA 105 Min Reserve
- Fuel Delivery System: Electronic Fuel Injection (EFI)
- Fuel Tank Capacity: 5.5 Gallons
- Top Speed: 15-17 mph
Steering & Suspension
- Steering Mechanism: Self-adjusting Rack and Pinion
- Front Suspension: Independent Leaf Spring w/ Dual Hydraulic Shocks
Brakes
- Brakes: Rear Wheel, Self-adjusting Mechanical Drum
- Park Brake: Foot Operated, Multi-lock
Body & Tires
- ABS w/ Automotive Paint, Aluminum/ArmorFlex® Finish
- Tires: 20 x 10-8, 4-ply, All Trail II Tread
Dimensions & Weights
- Overall Height: 46.9"
- Overall Length: 100.2"
- Max Width (w/o Mirrors): 45"
- Ground Clearance (Differential): 5.5"
- Vehicle Weight: 863 lbs.
- Bed Length x Width x Height (Cargo Box): 27.5" x 43.5" x 11"
- Cargo Box Payload: 300 lbs.
- Total Vehicle Payload: 800 lbs.
- Towing Capacity: 300 Lbs
- Wheelbase: 65"
- Track Width (Front): 34.5"
- Track Width (Rear): 38.5"
Warranty
- 3-Year or 3,000 Hour - Limited Powertrain
- 1-Year or 1,000 Hour - Frame
- 1-Year or 1,000 Hour - Limited Remaining Vehicle
Power
- Engine/Motor Type: 48v DC
- Controller: 250 Amp - Solid State
- Horsepower (rated): 3.3 HP (2.4 kW) rated, Peak 13 HP (9.6 kW)
- Max Torque: 34.5 ft-lbs. (46.7 N-M) rated @ 1980 RPM
- Transmission: Direct Drive, Double Reduction Helical Gear
- Gear Selection: Forward/Neutral/Reverse
- Gear Ratio: 12.32:1
- Battery: Six (6) - 8v Flooded Lead Acid
- Charger: Eric (650 W High Frequency)
- Top Speed: 5-17 mph
Steering & Suspension
- Steering Mechanism: Self-adjusting Rack and Pinion
- Front Suspension: Independent Leaf Spring w/ Dual Hydraulic Shocks
Brakes
- Brakes: Rear Wheel, Self-adjusting Mechanical Drum
- Park Brake: Foot Operated, Multi-lock
Body & Tires
- ABS w/ Automotive Paint, Aluminum/ArmorFlex® Finish
- Tires: 20 x 10-8, 4-ply, All Trail II Tread
Dimensions & Weights
- Overall Height: 46.9"
- Overall Length: 100.2"
- Max Width (w/o Mirrors): 45"
- Ground Clearance (Differential): 5.5"
- Vehicle Weight: 980 lbs.
- Bed Length x Width x Height (Cargo Box): 27.5" x 43.5" x 11"
- Cargo Box Payload: 300 lbs.
- Total Vehicle Payload: 800 lbs.
- Towing Capacity: 300 Lbs
- Wheelbase: 65"
- Track Width (Front): 34.5"
- Track Width (Rear): 38.5"
Warranty
- 4-Year Limited Battery Warranty
- 3-Year or 3,000 Hour - Limited Powertrain
- 1-Year or 1,000 Hour - Frame
- 1-Year or 1,000 Hour - Limited Remaining Vehicle
