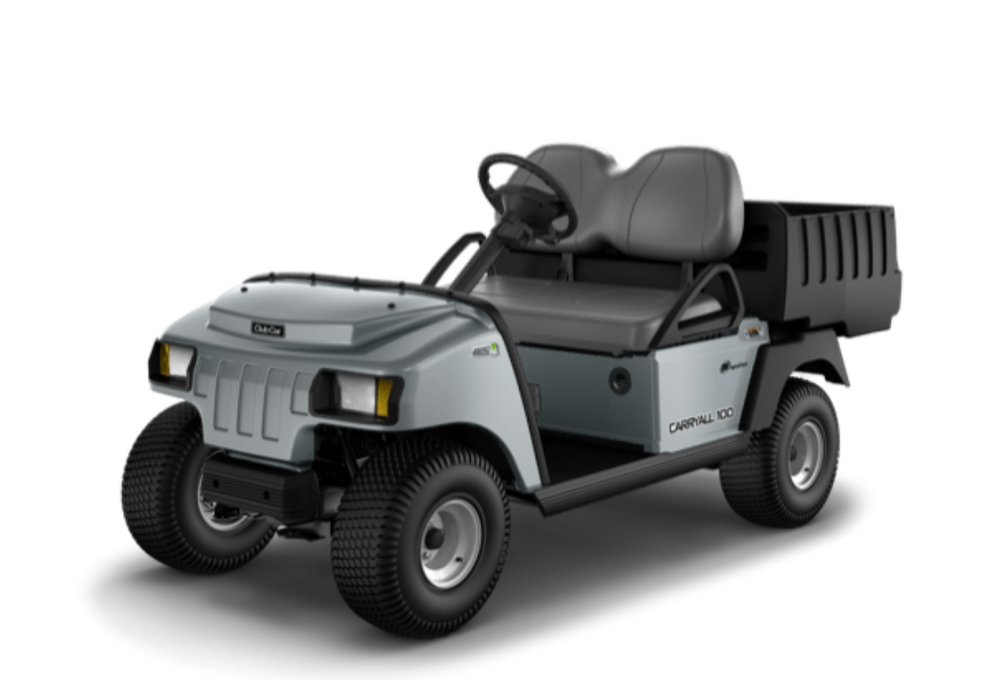

This Carryall 100 offers a cost-efficient solution for carrying cargo. The trailer hitch and ball help you tow, and the differential guard provides extra protection for your vehicle. Enjoy secure hauling and worry-free transport with this reliable design.
SPECIFICATIONS (ELECTRIC)
ENGINE/MOTOR TYPE: 48V DC
CONTROLLER: 250 AMP - SOLID STATE
HORSEPOWER (RATED): 3.3 HP (2.4 kW) rated, Peak 13 HP (9.6 kW)
MAX TORQUE: 34.5 FT-LBS (46.7 N-m) RATED @ 1980 RPM
TRANSMISSION: DIRECT DRIVE, DOUBLE REDUCTION HELICAL GEAR
GEAR SELECTION: FORWARD/NEUTRAL/REVERSE
GEAR RATIO: 12.32:1
BATTERY: Six (6) - 8 V FLOODED LEAD ACID
CHARGER: ERIC (650 W HIGH FREQUENCY)
HEADLIGHTS: TWO (2) 50 Watt HALOGEN
STEERING MECHANISM: SELF-ADJUSTING RACK AND PINION
SUSPENSION: INDEPENDENT LEAF SPRING W/DUAL HYDRAULIC SHOCKS
BRAKES: REAR MECHANICAL DRUM
PARK BRAKE: FOOT OPERATED, MULTI-LOCK
BODY: MOLDED COMPOSITE
TIRES: 20 x 8-8, 4-PLY
WHEELBASE: 65"
OVERALL HEIGHT: 46.9"
OVERALL LENGTH: 100.2"
BED LENGTH X WIDTH X HEIGHT (CARGO BOX): 27.5" x 43.5" x 11"
GROUND CLEARANCE (DIFFERENTIAL): 5.5"
TRACK WIDTH (FRONT): 34.5"
TRACK WIDTH (REAR): 38.5"
MAX WIDTH (W/O MIRRORS): 45"
TOTAL VEHICLE CAPACITY: 800 LBS
BED LOAD CAPACITY: 300 LBS
TOWING CAPACITY: 300 LBS
COMBINED GROSS VEHICLE CAPACITY: 800 LBS
SPEED: 15-17 MPH
WARRANTY:
- 4-YEAR - LIMITED BATTERY WARRANTY
- 3-YEAR / 3,000 HOUR - LIMITED POWERTRAIN
- 1-YEAR / 1,000 HOUR - FRAME
- 1-YEAR / 1,000 HOUR - LIMITED REMAINING VEHICLE
SPECIFICATIONS (GAS)
ENGINE/MOTOR TYPE: KOHLER, 4-CYCLE
DISPLACEMENT: 429 CC
CYLINDERS: SINGLE
VALVING: OVERHEAD CAM
COOLING: AIR-COOLED
HORSEPOWER (RATED): 14.5 HP (10.8 kW) rated @ 3600 RPM PER SAE J1940
MAX TORQUE: 20.9 FT-LBS (28.3 N-m) RATED @ 2800 RPM
LUBRICATION: SPLASH LUBRICATION
GOVERNOR: GROUND SPEED
TRANSMISSION: CONTINUOUSLY VARIABLE TRANSMISSION (CVT)
GEAR SELECTION: FORWARD/NEUTRAL/REVERSE
GEAR RATIO: 11.47:1 FORWARD; 15.63:1 REVERSE
IGNITION: ELECTRONIC
BATTERY: 12V 500 CCA 105 MIN RESERVE
HEADLIGHTS: TWO (2) 50 Watt HALOGEN
FUEL DELIVERY SYSTEM: ELECTRONIC FUEL INJECTION (EFI)
FUEL TANK CAPACITY: 5.5 GALLONS
STEERING MECHANISM: SELF-ADJUSTING RACK AND PINION
SUSPENSION: INDEPENDENT LEAF SPRING W/DUAL HYDRAULIC SHOCKS
BRAKES: REAR MECHANICAL DRUM
PARK BRAKE: FOOT OPERATED, MULTI-LOCK
BODY: MOLDED COMPOSITE
TIRES: 20 x 8-8, 4-PLY
WHEELBASE: 65"
OVERALL HEIGHT: 46.9"
OVERALL LENGTH: 100.2"
BED LENGTH X WIDTH X HEIGHT (CARGO BOX): 27.5" x 43.5" x 11"
GROUND CLEARANCE (DIFFERENTIAL): 5.5"
TRACK WIDTH (FRONT): 34.5"
TRACK WIDTH (REAR): 38.5"
MAX WIDTH (W/O MIRRORS): 45"
TOTAL VEHICLE CAPACITY: 800 LBS
BED LOAD CAPACITY: 300 LBS
TOWING CAPACITY: 300 LBS
COMBINED GROSS VEHICLE CAPACITY: 800 LBS
SPEED: 15-17 MPH
WARRANTY:
- 3-YEAR / 3,000 HOUR - LIMITED POWERTRAIN
- 1-YEAR / 1,000 HOUR - FRAME
- 1-YEAR / 1,000 HOUR - LIMITED REMAINING VEHICLE
