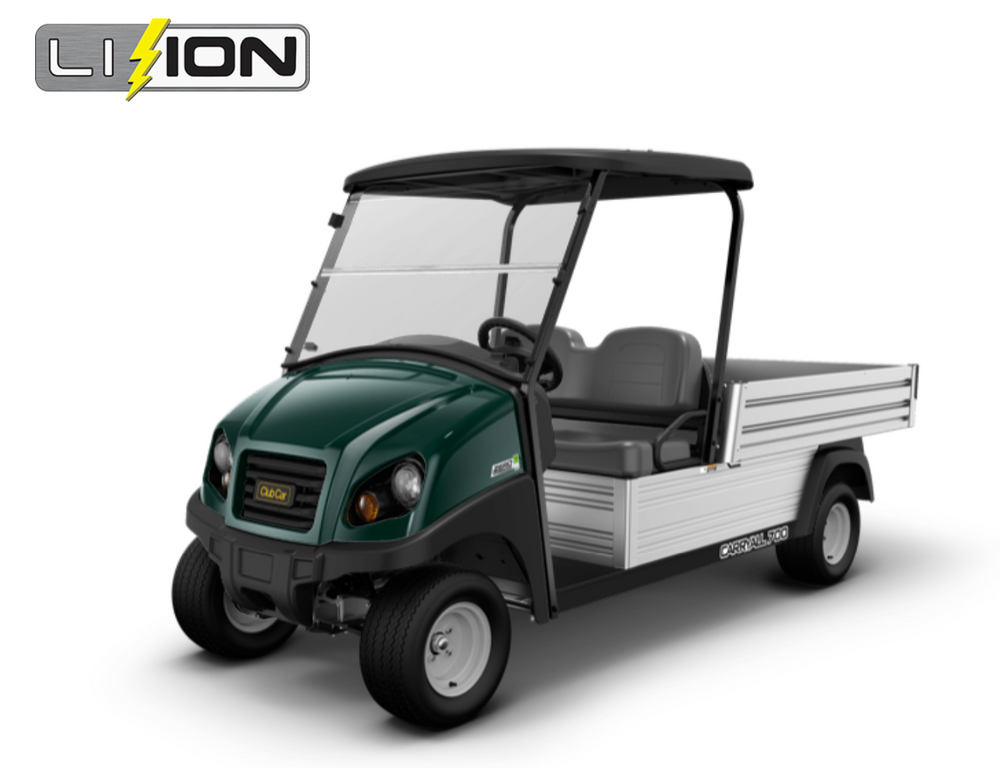

This 2023 Carryall 700 comes equipped with a powerful Lithium-Ion battery, LED headlights, tail lights and brake lights, a horn, and an electric bed lift. This efficient and reliable machine is ideal for a variety of uses, to help you work smarter, not harder.
Power
- Engine/Motor Type: 48v 3-phase AC
- Controller: 450 Amp - Solid State
- Horsepower (rated): 7.4 HP (5.5 kW) rated @ 2863 RPM, 30V AC RMS and 149A; Peak 21.4 HP (16 kW)
- Transmission: Direct Drive, Double Reduction Helical Gear
- Gear Selection: Forward/Neutral/Reverse
- Gear Ratio: 12.32:1
- Battery: Vangaurd 7.0 kWh Lithium
- Charger - Standard: DeltaQ IC650 - 650w High Frequency
- Charger - Optional Upgrade: DeltaQ IC900 - 900w High Frequency
- Top Speed: 5-19 mph
Steering & Suspension
- Steering Mechanism: Self-adjusting Rack and Pinion
- Suspension: Independent Leaf Spring w/ Dual Hydraulic Shocks
Brakes
- Brakes: 4-Wheel Mechanical Drum
- Park Brake: Foot Operated, Multi-lock
Body & Tires
- Headlights: Two (2) 37.5w Halogen
- Body - Front and Finish: ArmorFlex® w/ Automotive Paint/Clearcoat
- Body - Rear: Aluminum
- Tires: 20 x 10-10, 6-ply, Premium Tread
Dimensions & Weights
- Overall Height: 47.1"
- Overall Length: 137.5"
- Max Width (w/o Mirrors): 50.3"
- Ground Clearance (Differential): 5.6"
- Vehicle Weight: 1,475 lbs.
- Bed Length x Width x Height (Cargo Box): 65.5" x 47.5" x 10.5"
- Bed Load Capacity: 1,000 lbs.
- Total Vehicle Capacity: 1,500 lbs.
- Towing Capacity: 1,500 lbs.
- Wheelbase: 99.1"
- Track Width (Front): 36.6"
- Track Width (Rear): 39.5"
Warranty
- 5-Year - Limited Battery Warranty
- 3-Year - Limited Powertrain and Frame
- 2-Year - Limited Remaining Vehicle
