Carryall 502

Base Price

$11,678.00
( / )
Model
Contact Us For Additional Information
Build & Price
Explore All Carryall Models

*Price Does Not Include Dealer Fees, Freight, and Sales Tax

Click here to be notified by email when Carryall 502 becomes available.

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

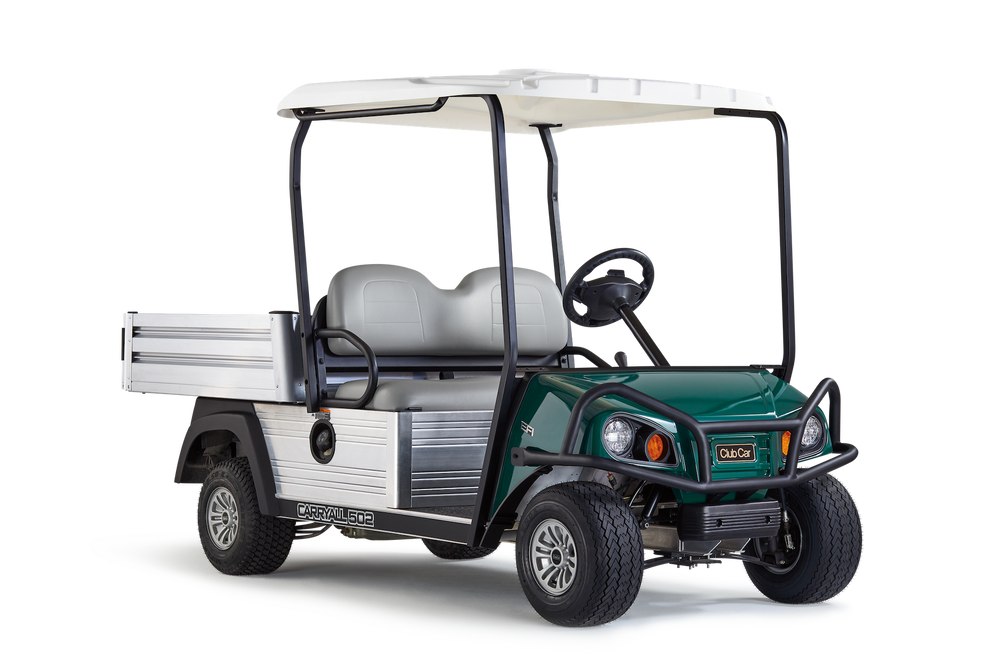

The Carryall 502 UTV combines the features you need most to do your best work with the quality, performance, and engineering of our 500 series.

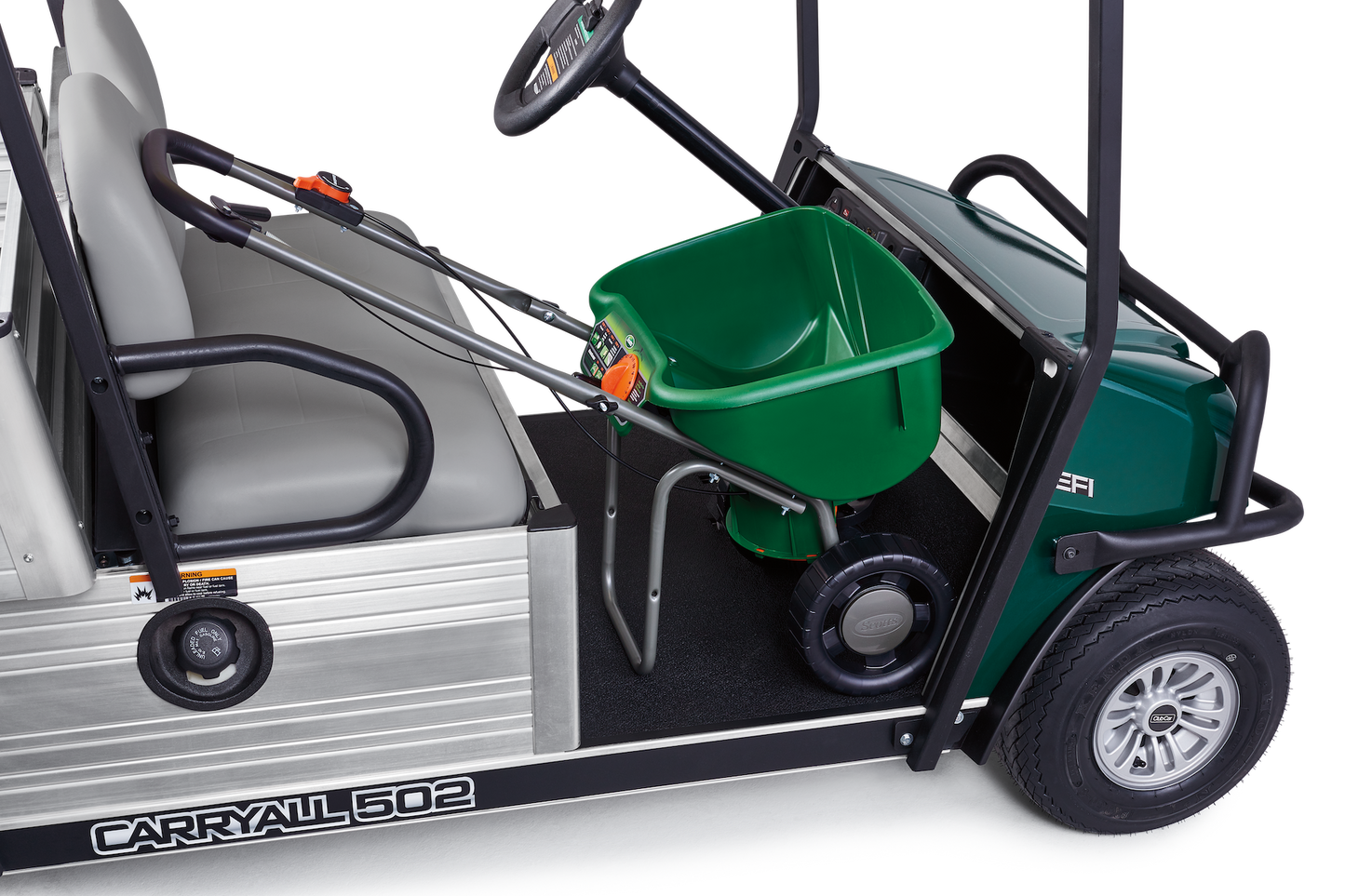

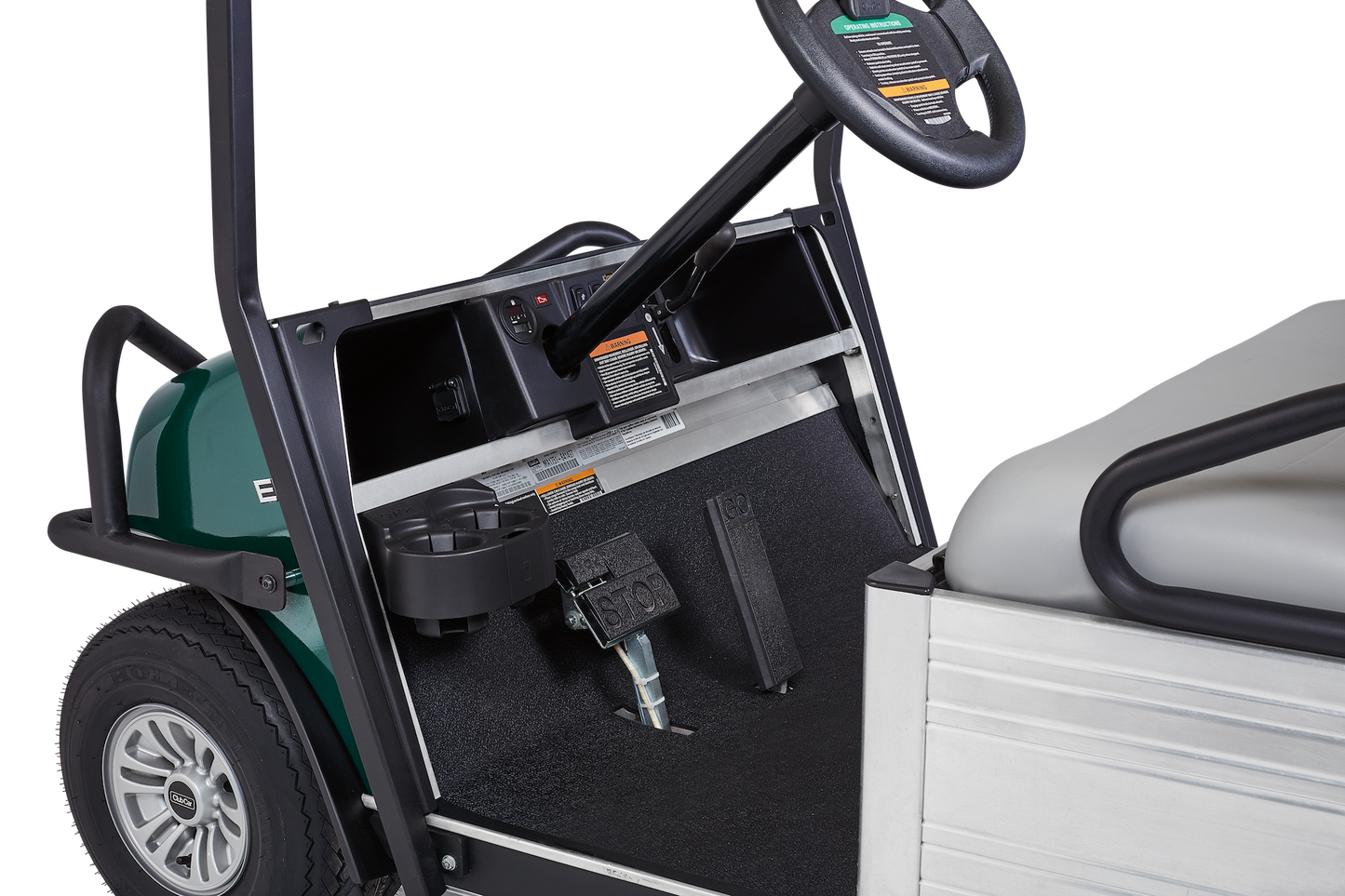

Applying input and feedback from hundreds of grounds maintenance experts, the Carryall 502 was designed with features to help make turf management easier. With extra room and a high-visibility dash, you can now manage and care for your grounds without interruption.

No detail was left out to ensure this utility vehicle works as intuitively and relentlessly as you do.

Specifications - Gas

  • Engine/Motor Type: Kohler, 4-cycle
  • Displacement: 429 cc
  • Cylinders: Single
  • Valving: Overhead Cam
  • Cooling: Air-cooled
  • Horsepower (rated): 14.0 HP (10.3 kW) rated @ 3600 RPM per SAE J1940
  • Max Torque: 20.9 ft-lbs. (28.3 n-m) rated @ 2800 RPM
  • Lubrication: Splash Lubrication
  • Governor: Ground Speed
  • Transmission: Continuously Variable Transmission (CVT)
  • Gear Selection: Forward/Neutral/Reverse
  • Gear Ratio: 11.47:1 Forward; 15.63:1 Reverse
  • Ignition: Electronic
  • Battery: 12v 500 CCA 105 Min Reserve
  • Fuel Delivery System: Electronic Fuel Injection (EFI)
  • Fuel Tank Capacity: 5.5 Gallons
  • Top Speed: 15-17 mph
  • Steering Mechanism: Self-adjusting Rack and Pinion
  • Front Suspension: Independent Leaf Spring w/ Dual Hydraulic Shocks
  • Brakes: 4-Wheel Mechanical Drum
  • Park Brake: Foot Operated, Multi-lock
  • Headlights: Two (2) 37.5w Halogen
  • Body - Front and Finish: ArmorFlex® w/ Automotive Paint/Clearcoat
  • Body - Rear: Aluminum
  • Tires: 18 x 8.5-8, 6-ply
  • Overall Height: 47.1"
  • Overall Length: 118"
  • Max Width (w/o Mirrors): 50.3"
  • Ground Clearance (Differential): 4.2"
  • Vehicle Weight: 907 lbs.
  • Bed Length x Width x Height (Cargo Box): 44.2" x 47.5" x 10.5"
  • Bed Load Capacity: 800 lbs.
  • Total Vehicle Capacity: 1,200 lbs.
  • Towing Capacity: 1,200 lbs.
  • Wheelbase: 78.1"
  • Track Width (Front): 36.6"
  • Track Width (Rear): 39.5"
  • 3-Year - Limited Powertrain and Frame
  • 2-Year - Limited Remaining Vehicle

Specifications - Electric

  • Engine/Motor Type: 48v DC
  • Controller: 500 Amp - Solid State
  • Horsepower (rated): 3.7 HP (2.7 kW) rated, Peak 20 HP (14.9 kW)
  • Max Torque: 71 ft-lbs. (96.2 n-m) rated @ 1450 RPM
  • Transmission: Direct Drive, Double Reduction Helical Gear
  • Gear Selection: Forward/Neutral/Reverse
  • Gear Ratio: 12.32:1
  • Battery: Eight (8) - 6v Flooded Lead Acid
  • Charger: Delta-Q Quiq (1kW High Frequency)
  • Top Speed: 5-17 mph
  • Steering Mechanism: Self-adjusting Rack and Pinion
  • Front Suspension: Independent Leaf Spring w/ Dual Hydraulic Shocks
  • Brakes: 4-Wheel Mechanical Drum
  • Park Brake: Foot Operated, Multi-lock
  • Headlights: Two (2) 37.5w Halogen
  • Body - Front and Finish: ArmorFlex® w/ Automotive Paint/Clearcoat
  • Body - Rear: Aluminum
  • Tires: 18 x 8.5-8, 6-ply
  • Overall Height: 47.1"
  • Overall Length: 118"
  • Max Width (w/o Mirrors): 50.3"
  • Ground Clearance (Differential): 4.2"
  • Vehicle Weight: 1,393 lbs.
  • Bed Length x Width x Height (Cargo Box): 44.2" x 47.5" x 10.5"
  • Bed Load Capacity: 800 lbs.
  • Total Vehicle Capacity: 1,200 lbs.
  • Towing Capacity: 1,200 lbs.
  • Wheelbase: 78.1"
  • Track Width (Front): 36.6"
  • Track Width (Rear): 39.5"
  • 4-Year - Limited Battery Warranty
  • 3-Year - Limited Powertrain and Frame
  • 2-Year - Limited Remaining Vehicle

Specifications - Lithium

  • Engine/Motor Type: 48v 3-phase AC
  • Controller: 450 Amp - Solid State
  • Horsepower (rated): 7.4 HP (5.5 kW) rated @ 2863 RPM, 30V AC RMS and 149A; Peak 21.4 HP (16 kW)
  • Transmission: Direct Drive, Double Reduction Helical Gear
  • Gear Selection: Forward/Neutral/Reverse
  • Gear Ratio: 12.32:1
  • Battery - Standard: Vangaurd 7.0 kWh Lithium
  • Battery - Optional Light-duty: Vangaurd 4.0 kWh Lithium
  • Charger - Standard: DeltaQ IC650 - 650w High Frequency
  • Charger - Optional Upgrade: DeltaQ IC900 - 900w High Frequency
  • Top Speed: 5-19 mph

  • Steering Mechanism: Self-adjusting Rack and Pinion
  • Front Suspension: Independent Leaf Spring w/ Dual Hydraulic Shocks
  • Brakes: 4-Wheel Mechanical Drum
  • Park Brake: Foot Operated, Multi-lock
  • Headlights: Two (2) 37.5w Halogen
  • Body - Front and Finish: ArmorFlex® w/ Automotive Paint/Clearcoat
  • Body - Rear: Aluminum
  • Tires: 18 x 8.5-8, 6-ply
  • Overall Height: 47.1"
  • Overall Length: 118"
  • Max Width (w/o Mirrors): 50.3"
  • Ground Clearance (Differential): 4.2"
  • Vehicle Weight: 951 lbs.
  • Bed Length x Width x Height (Cargo Box): 44.2" x 47.5" x 10.5"
  • Bed Load Capacity: 800 lbs.
  • Total Vehicle Capacity: 1,200 lbs.
  • Towing Capacity: 1,200 lbs.
  • Wheelbase: 78.1"
  • Track Width (Front): 36.6"
  • Track Width (Rear): 39.5"
  • 5-Year - Limited Battery Warranty
  • 3-Year - Limited Powertrain and Frame
  • 2-Year - Limited Remaining Vehicle
