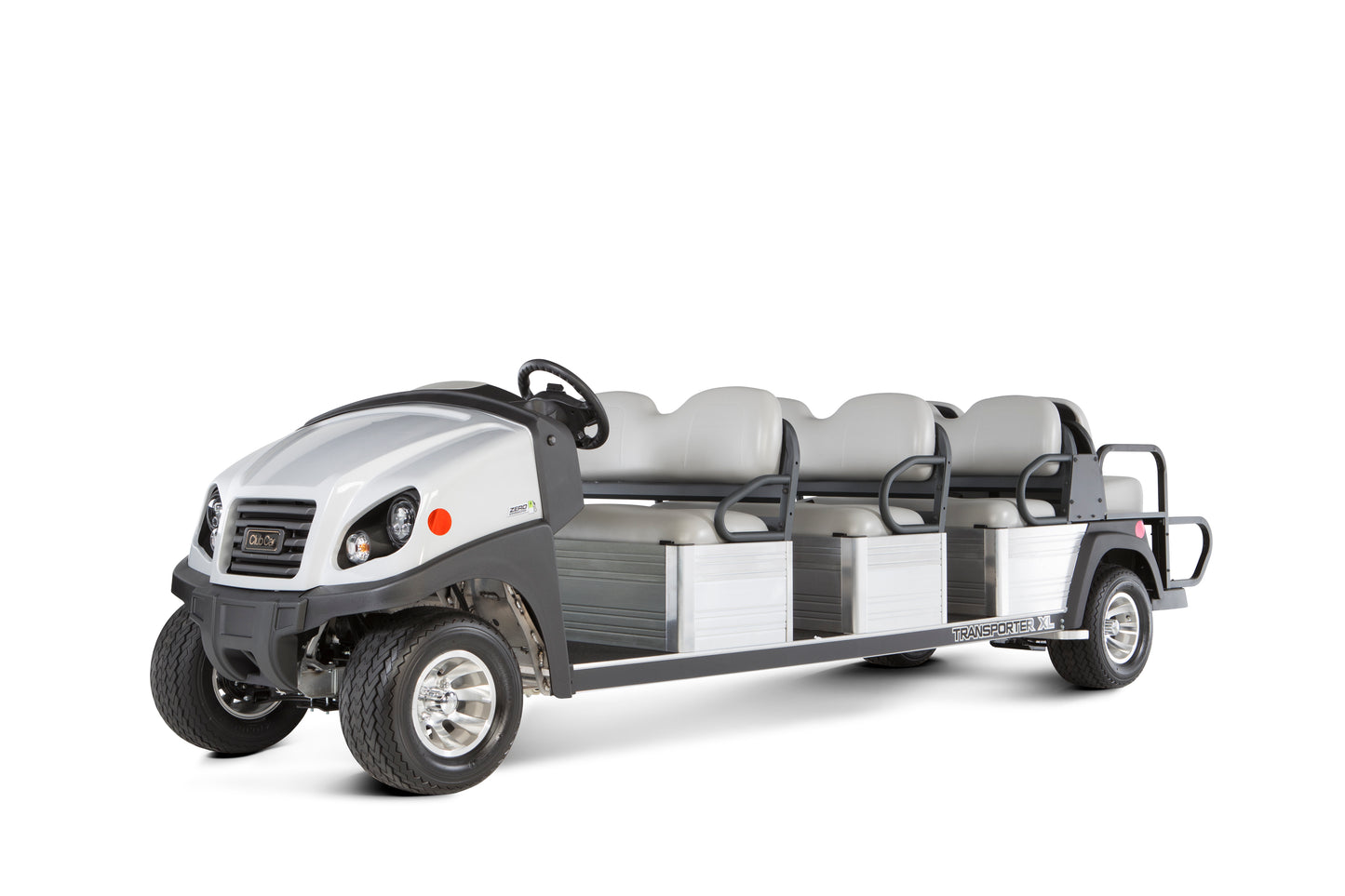

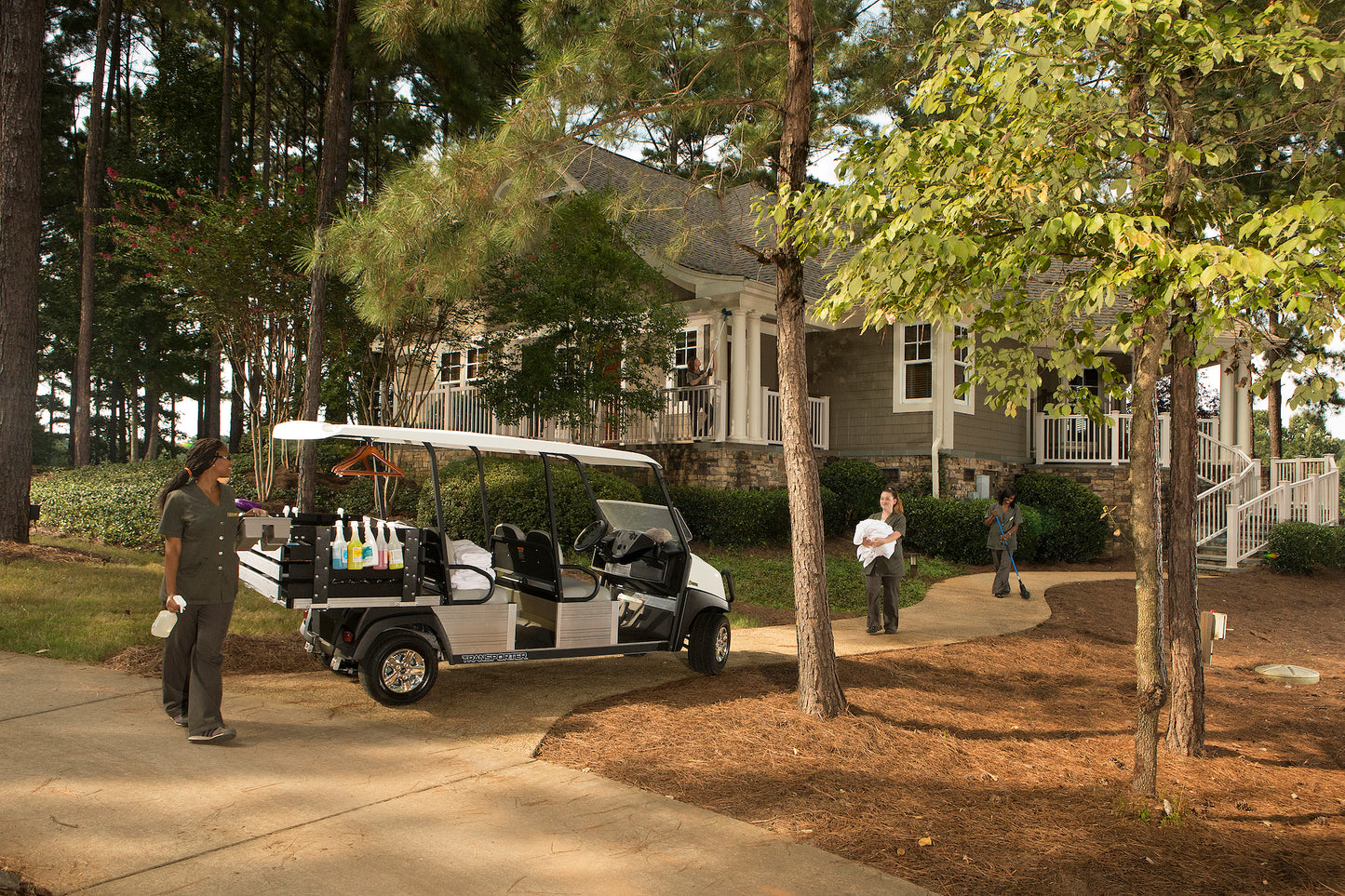

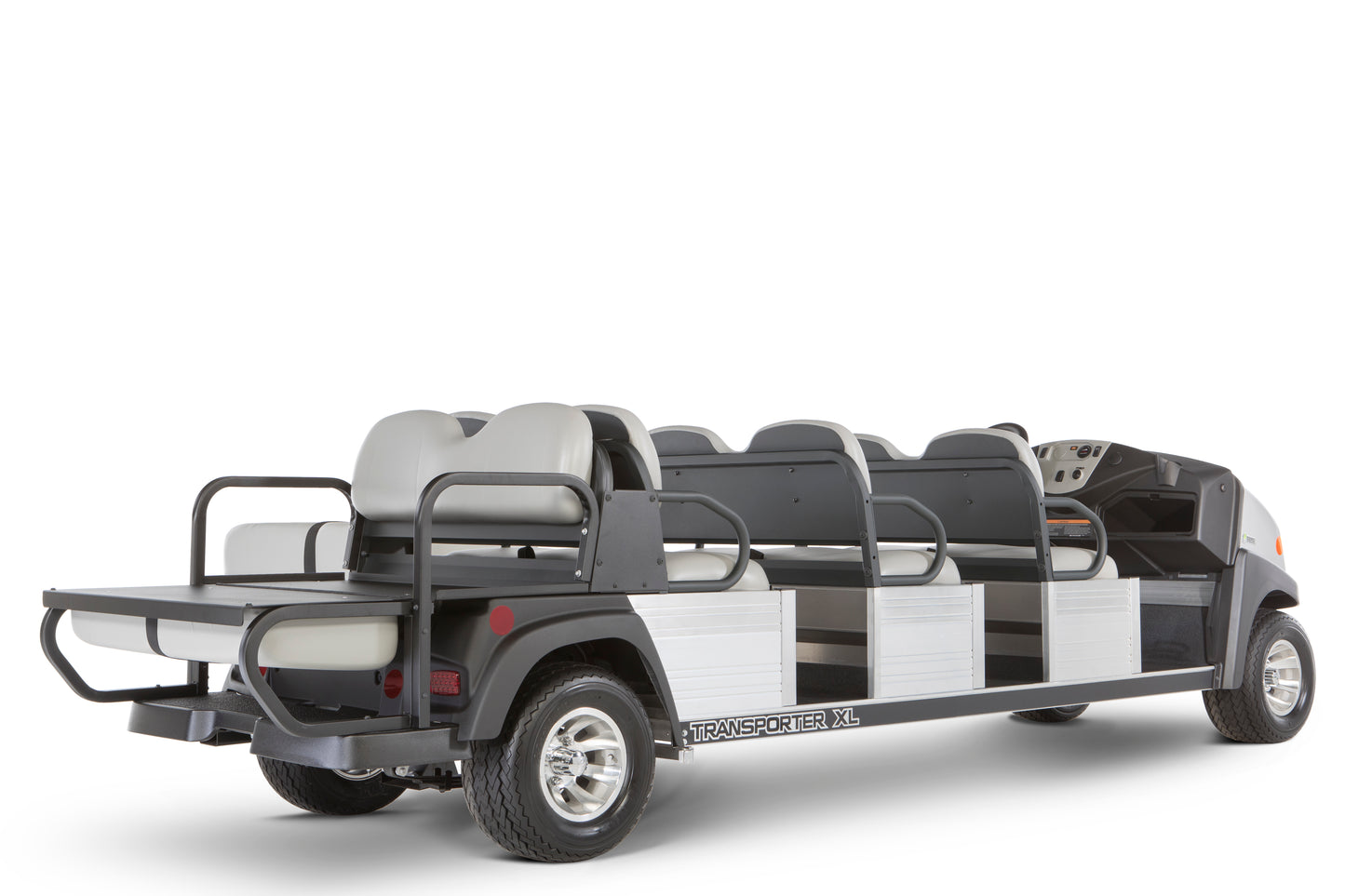

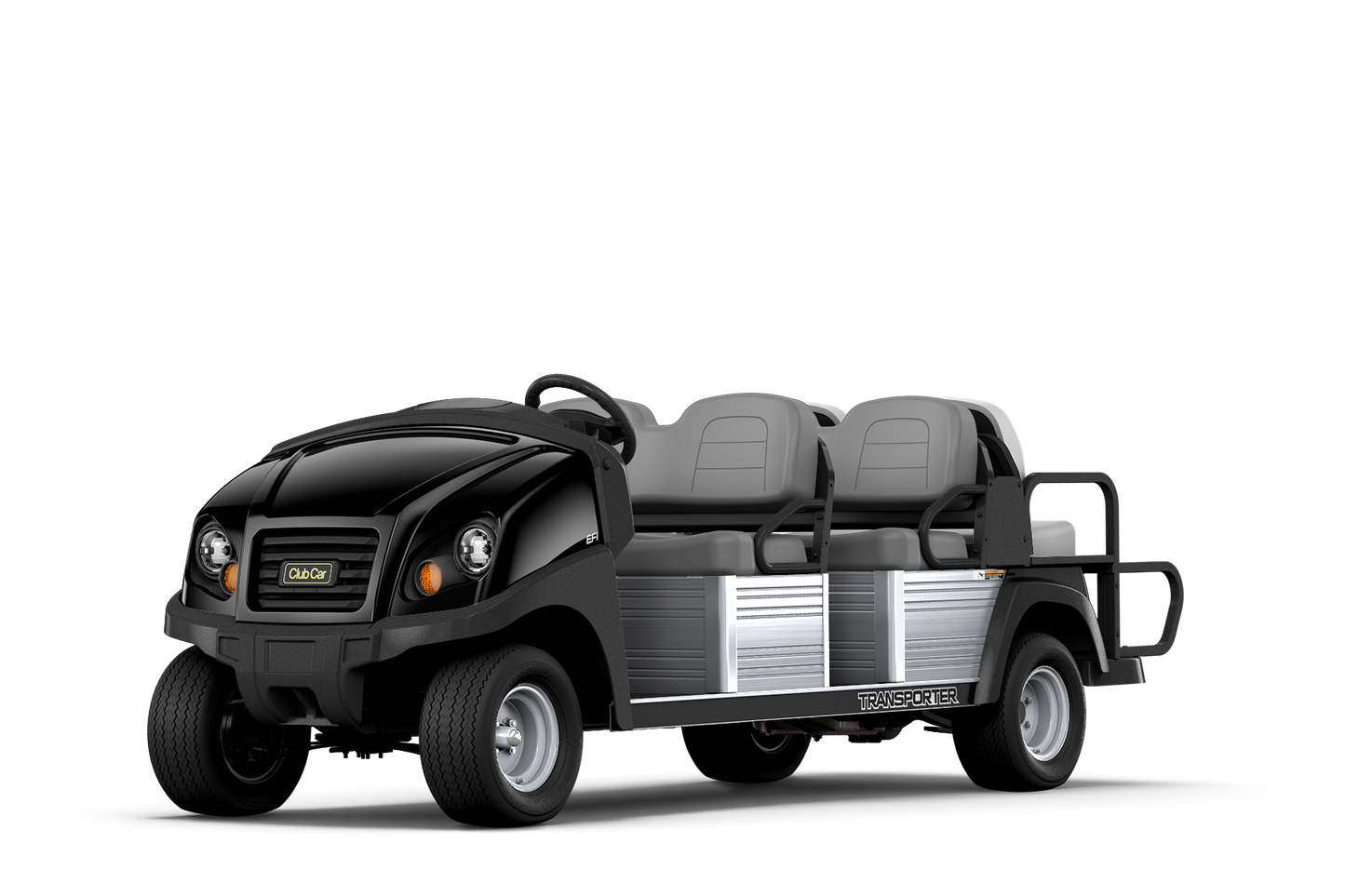

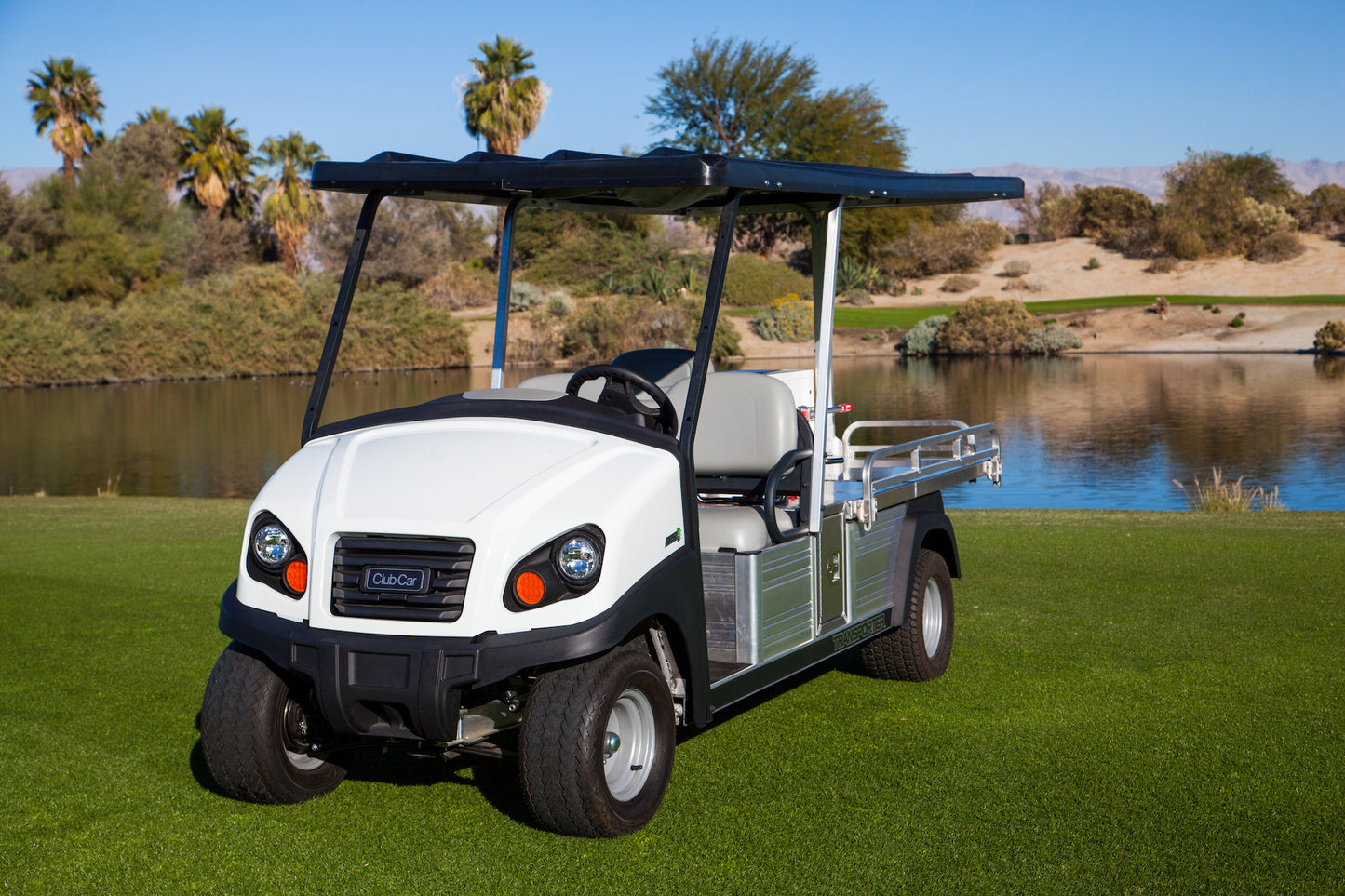

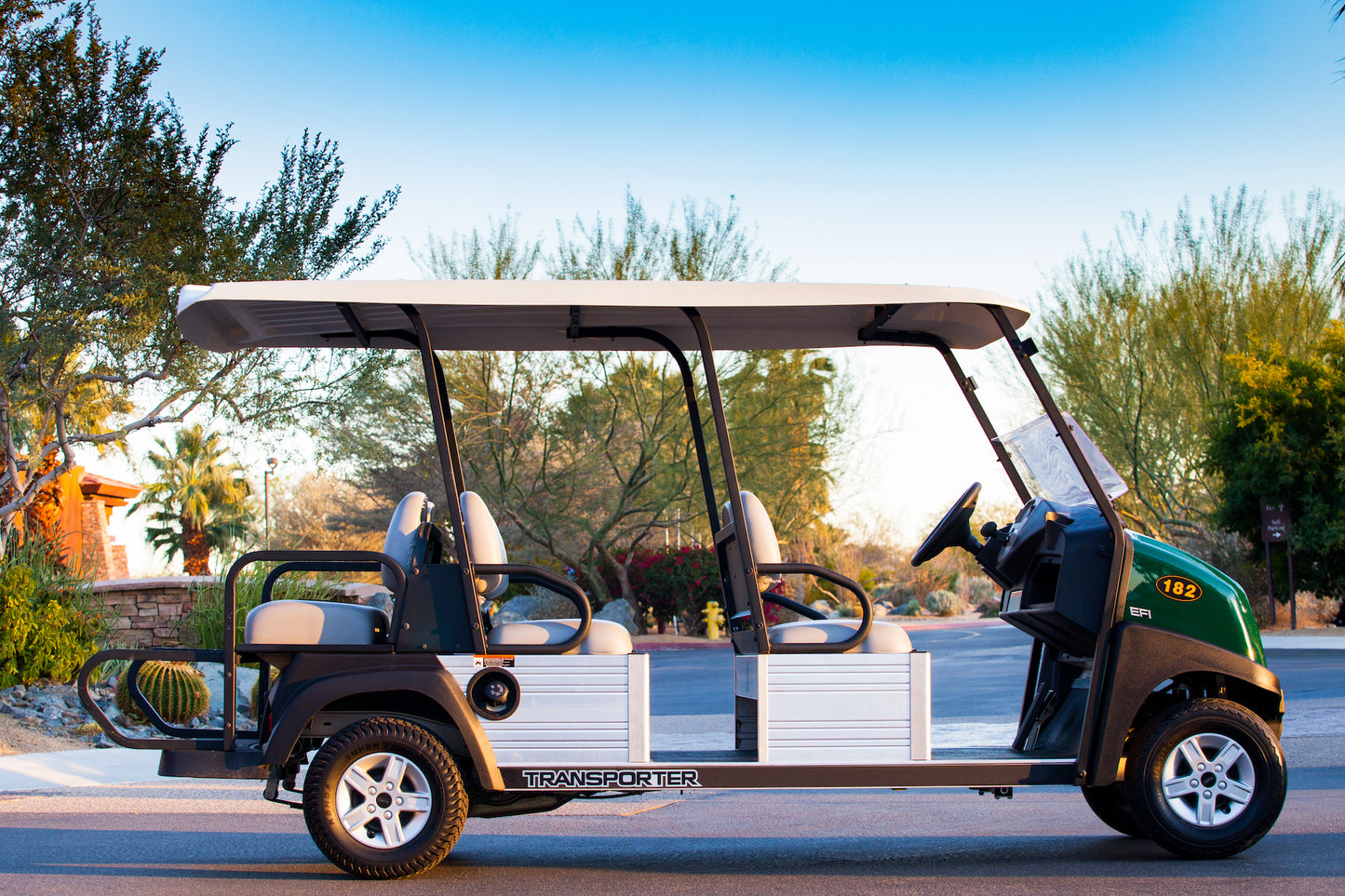

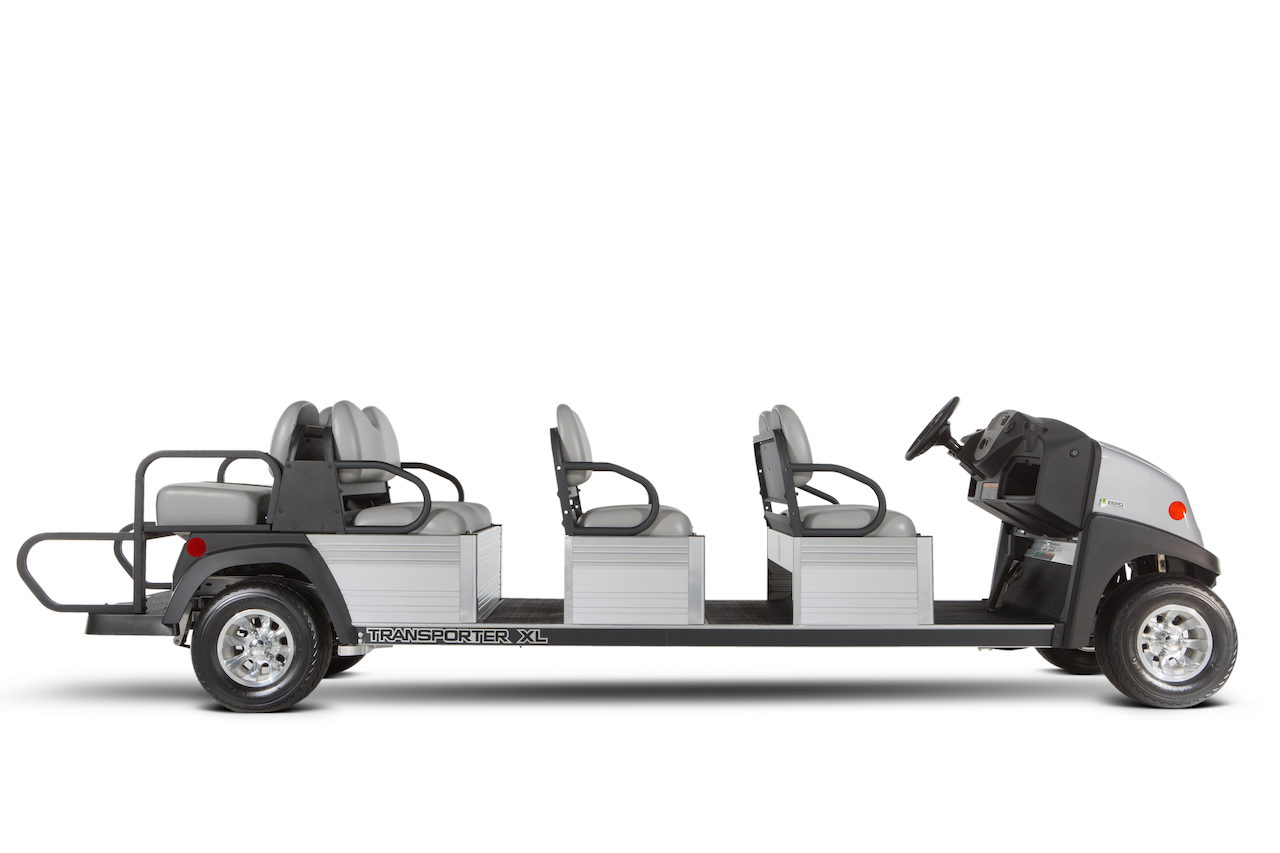

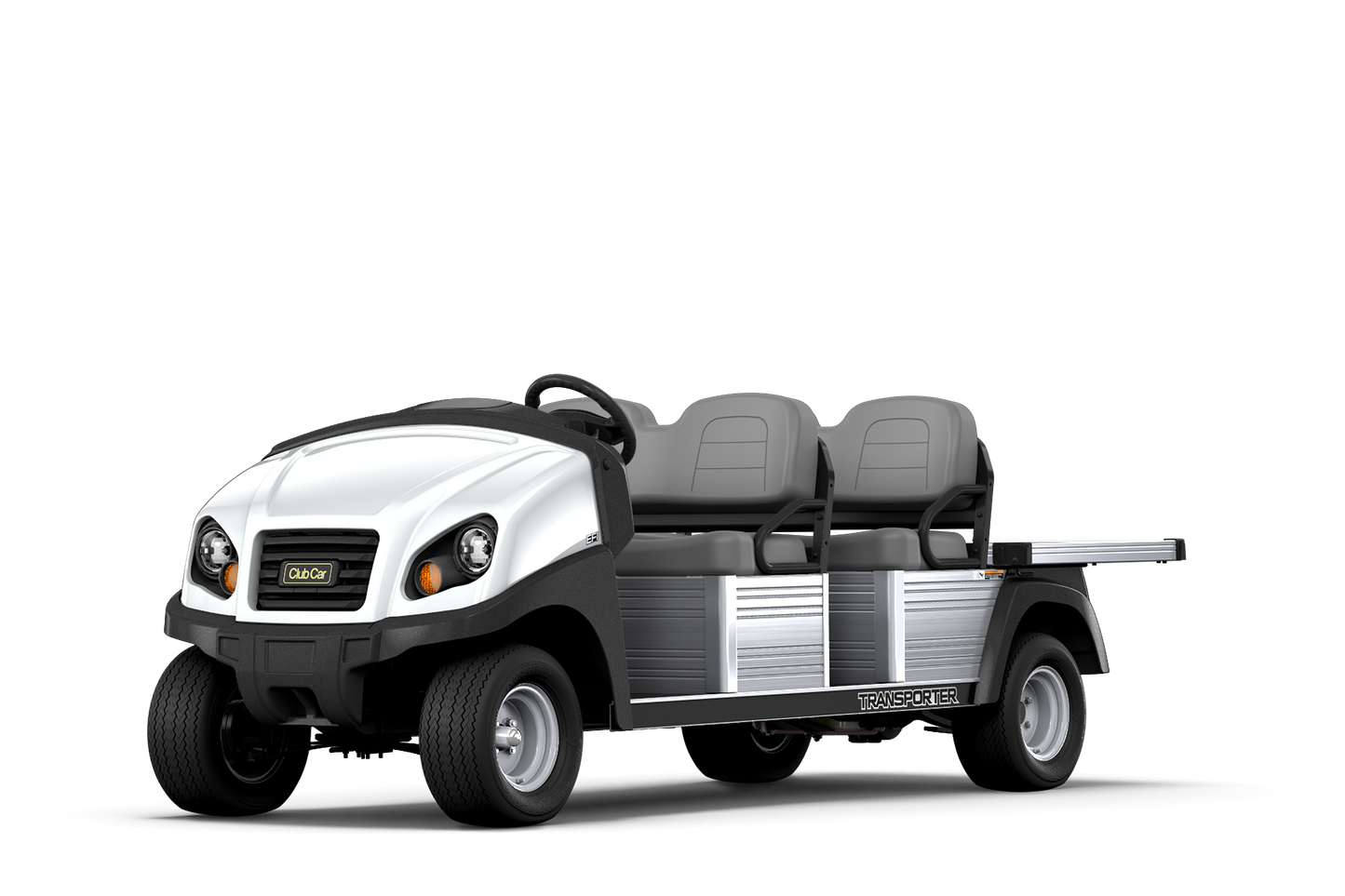

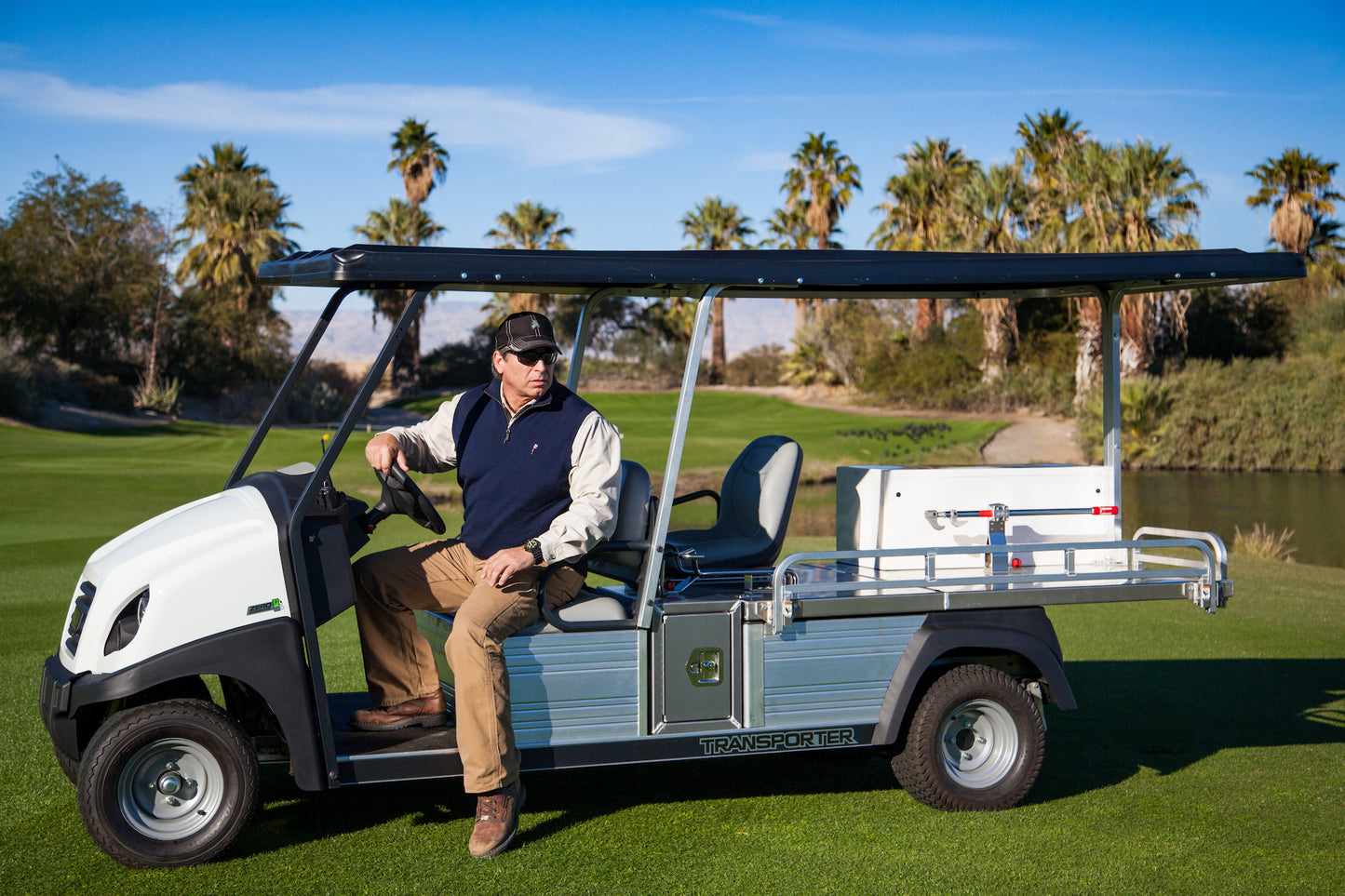

Transporter carries four to six team members. It’s great for campuses, resorts, airports, and many other users.

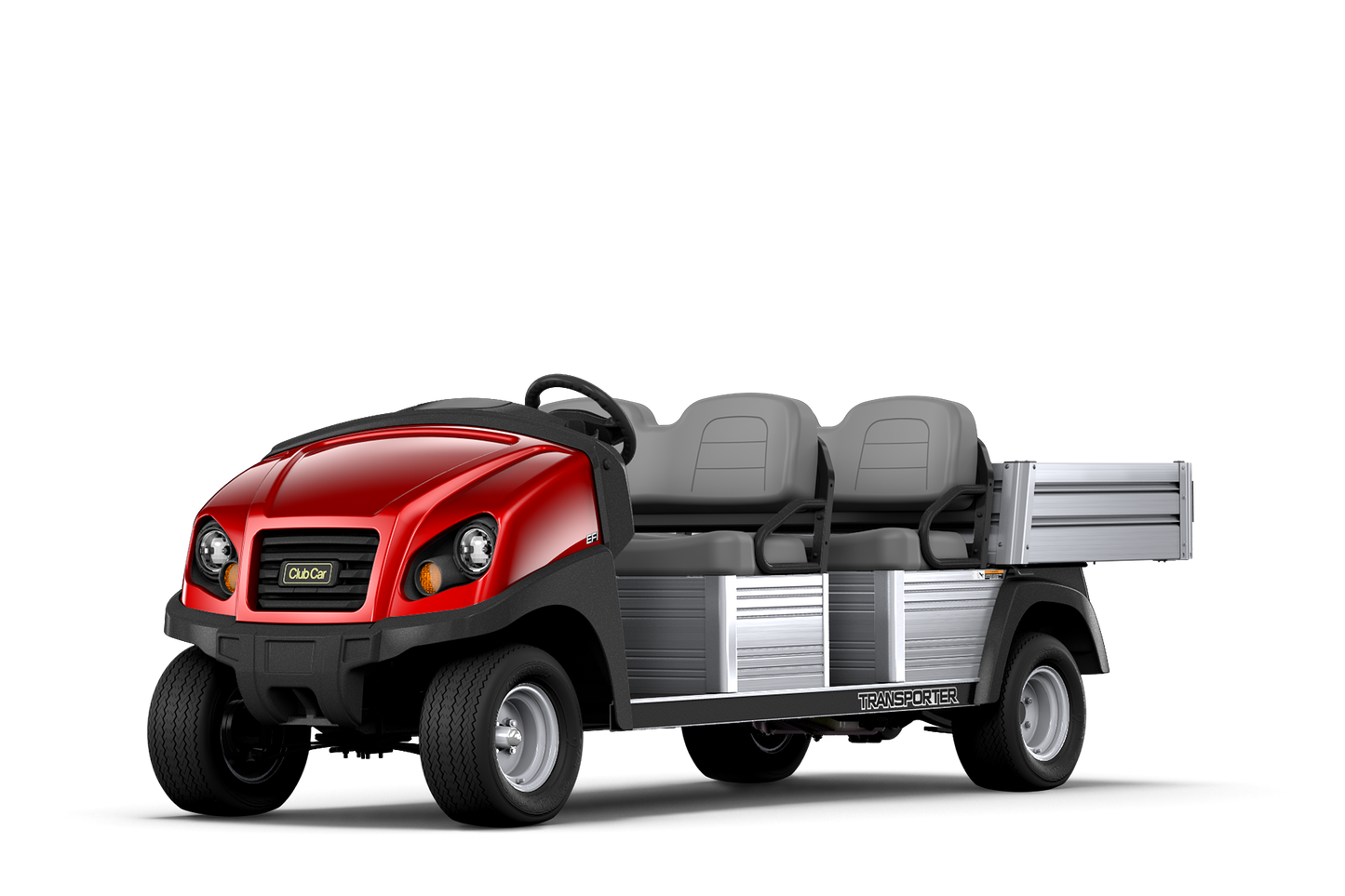

Four-passenger models come with cargo beds, and all Transporter passenger vehicles feature rustproof aircraft-grade aluminum frames that resist water, fertilizers, chemicals, and salt and extend the vehicles’ lifespans.
Carryall utility vehicles now include a powerful 14.0 HP Kohler gas engine for better efficiency and consistent performance, regardless of the application.
Electric models are available with optional extended-range batteries to keep you powered and moving all day. They also feature smart onboard chargers and reel retractors that prevent common user errors and let you charge at any 110-volt outlet. Upgrade your Carryall with a 48V AC electric powertrain for increased performance, power, and acceleration to keep your operations running smoothly.
Power
- Engine/Motor Type: Kohler, 4-cycle
- Displacement: 429 cc
- Cylinders: Single
- Valving: Overhead Cam
- Cooling: Air-cooled
- Horsepower (rated): 14.0 HP (10.3 kW) rated @ 3600 RPM per SAE J1940
- Max Torque: 20.9 ft-lbs. (28.3 n-m) rated @ 2800 RPM
- Lubrication: Splash Lubrication
- Governor: Ground Speed
- Transmission: Continuously Variable Transmission (CVT)
- Gear Selection: Forward/Neutral/Reverse
- Gear Ratio: 11.47:1 Forward; 15.63:1 Reverse
- Ignition: Electronic
- Battery: 12v 500 CCA 105 Min Reserve
- Fuel Delivery System: Electronic Fuel Injection (EFI)
- Fuel Tank Capacity: 5.5 Gallons
- Top Speed: 15-17 mph
Steering & Suspension
- Steering Mechanism: Self-adjusting Rack and Pinion
- Front Suspension: Independent Leaf Spring w/ Dual Hydraulic Shocks
Brakes
- Brakes: 4-Wheel Mechanical Drum
- Park Brake: Foot Operated, Multi-lock
Body & Tires
- Headlights: Two (2) 37.5w Halogen
- Body - Front and Finish: ArmorFlex® w/ Automotive Paint/Clearcoat
- Body - Rear: Aluminum
- Tires: 22 x 10-10, 6-ply, Premium Tread
Dimensions & Weights
- Overall Height: 47.1"
- Overall Length: 140.2"
- Max Width (w/o Mirrors): 50.3"
- Ground Clearance (Differential): 5.6"
- Vehicle Weight: 932 - 943 lbs.
- Bed Length x Width x Height (Cargo Box): 37" x 47.5" x 10.5"
- Bed Load Capacity: 300 lbs.
- Total Vehicle Capacity: 1,500 lbs.
- Seating Capacity: 4-8
- Towing Capacity: 1,500 lbs.
- Wheelbase: 99.1"
- Track Width (Front): 36.6"
- Track Width (Rear): 39.5"
Warranty
- 3-Year - Limited Powertrain and Frame
- 2-Year - Limited Remaining Vehicle
Power
- Engine/Motor Type: 48v DC
- Controller: 500 Amp - Solid State
- Horsepower (rated): 3.7 HP (2.7 kW) rated, Peak 20 HP (14.9 kW)
- Max Torque: 71 ft-lbs. (96.2 n-m) rated @ 1450 RPM
- Transmission: Direct Drive, Double Reduction Helical Gear
- Gear Selection: Forward/Neutral/Reverse
- Gear Ratio: 12.32:1
- Battery: Eight (8) - 6v Flooded Lead Acid
- Charger: Delta-Q Quiq (1kW High Frequency)
- Top Speed: 5-17 mph
Steering & Suspension
- Steering Mechanism: Self-adjusting Rack and Pinion
- Front Suspension: Independent Leaf Spring w/ Dual Hydraulic Shocks
Brakes
- Brakes: 4-Wheel Mechanical Drum
- Park Brake: Foot Operated, Multi-lock
Body & Tires
- Headlights: Two (2) 37.5w Halogen
- Body - Front and Finish: ArmorFlex® w/ Automotive Paint/Clearcoat
- Body - Rear: Aluminum
- Tires: 22 x 10-10, 6-ply, Premium Tread
Dimensions & Weights
- Overall Height: 47.1"
- Overall Length: 140.2"
- Max Width (w/o Mirrors): 50.3"
- Ground Clearance (Differential): 5.2"
- Vehicle Weight: 1,494 - 1,505 lbs.
- Bed Length x Width x Height (Cargo Box): 37" x 47.5" x 10.5"
- Bed Load Capacity: 300 lbs.
- Total Vehicle Capacity: 1,500 lbs.
- Seating Capacity: 4-8
- Towing Capacity: 1,500 lbs.
- Wheelbase: 99.1"
- Track Width (Front): 36.6"
- Track Width (Rear): 39.5"
Warranty
- 4-Year - Limited Battery Warranty
- 3-Year - Limited Powertrain and Frame
- 2-Year - Limited Remaining Vehicle
Power
- Engine/Motor Type: 48v AC
- Controller: 400 Amp - Solid State
- Horsepower (rated): 8.0 HP (6.0 kW), Peak 16.0 HP (11.7 kW)
- Transmission: Direct Drive, Double Reduction Helical Gear
- Gear Selection: Forward/Neutral/Reverse
- Gear Ratio: 12.32:1
- Battery: Eight (8) - 6v Flooded Lead Acid
- Charger: Delta-Q Quiq (1kW High Frequency)
- Top Speed: 5-17 mph
Steering & Suspension
- Steering Mechanism: Self-adjusting Rack and Pinion
- Front Suspension: Independent Leaf Spring w/ Dual Hydraulic Shocks
Brakes
- Brakes: 4-Wheel Mechanical Drum
- Park Brake: Foot Operated, Multi-lock
Body & Tires
- Headlights: Two (2) 37.5w Halogen
- Body - Front and Finish: ArmorFlex® w/ Automotive Paint/Clearcoat
- Body - Rear: Aluminum
- Tires: 22 x 10-10, 6-ply, Premium Tread
Dimensions & Weights
- Overall Height: 47.1"
- Overall Length: 140.2"
- Max Width (w/o Mirrors): 50.3"
- Ground Clearance (Differential): 5.2"
- Vehicle Weight: 1,494 - 1,505 lbs.
- Bed Length x Width x Height (Cargo Box): 37" x 47.5" x 10.5"
- Bed Load Capacity: 300 lbs.
- Total Vehicle Capacity: 1,500 lbs.
- Seating Capacity: 4-8
- Towing Capacity: 1,500 lbs.
- Wheelbase: 99.1"
- Track Width (Front): 36.6"
- Track Width (Rear): 39.5"
Warranty
- 4-Year - Limited Battery Warranty
- 3-Year - Limited Powertrain and Frame
- 2-Year - Limited Remaining Vehicle
